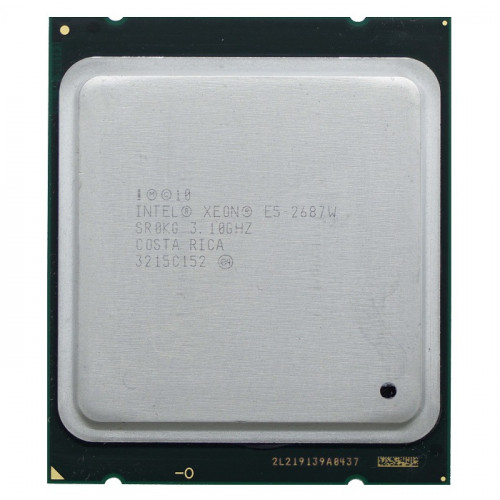

процессор сокет 2011 Intel Xeon E5-2687W SR0KG

процессор сокет 2011 Intel Xeon E5-2687W SR0KG

Нет в наличии
Рейтинг:

Нет в наличии 8140
8 140 р.

  • Код товара: процессор сокет 2011 Intel Xeon E5-2687W SR0KG
TypeCPU / Microprocessor
Market segmentServer
Family
Intel Xeon E5-2600
Model number
E5-2687W
CPU part numbers
  • CM8062107184308 is an OEM/tray microprocessor
  • BX80621E52687W is a boxed microprocessor
Frequency 3100 MHz
Maximum turbo frequency3800 MHz (1 core)
3600 MHz (2 or 3 cores)
3500 MHz (4 or 5 cores)
3400 MHz (6 or more cores)
Bus speed 8 GT/s QPI (4000 MHz)
5 GT/s DMI
Clock multiplier 31
Package2011-land Flip-Chip Land Grid Array
SocketSocket 2011 / LGA2011
Size2.07" x 1.77" / 5.25cm x 4.5cm

S-spec numbers
Part number
Production processors

SR0KG
BX80621E52687W     +
CM8062107184308
+
Architecture / Microarchitecture
MicroarchitectureSandy Bridge
PlatformRomley-EP
Romley-WS
Processor core Sandy Bridge-EP
Core steppings C0 (QB7R)
C0? (QAR6)
C1 (QBE9, SR0GX)
C2 (QBUB, SR0KG)
CPUID206D7 (QBUB, SR0KG)
Manufacturing process0.032 micron Hi-K metal gate process
Data width64 bit
The number of CPU cores8
The number of threads16
Floating Point UnitIntegrated
Level 1 cache size 8 x 32 KB 8-way set associative instruction caches
8 x 32 KB 8-way set associative data caches
Level 2 cache size 8 x 256 KB 8-way set associative caches
Level 3 cache size20 MB 20-way set associative shared cache
Physical memory384 GB (per socket)
MultiprocessingUp to 2 processors
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
Security Features
  • NX / XD / Execute disable bit
  • TXT / Trusted Execution technology
Low power features
  • Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsNone
Memory controllerThe number of controllers: 1
Memory channels (per controller): 4
Memory channels (total): 4
Supported memory: DDR3-800, DDR3-1066, DDR3-1333, DDR3-1600
DIMMs per channel: 3
Maximum memory bandwidth (GB/s): 51.2
ECC supported: Yes
Other peripherals
  • Direct Media Interface 2.0
  • Quick Path Interconnect (2 links)
  • PCI Express 3.0 interface
Electrical / Thermal parameters
V core 0.6V - 1.35V
Maximum operating temperature 84.8°C
Thermal Design Power 150 Watt
