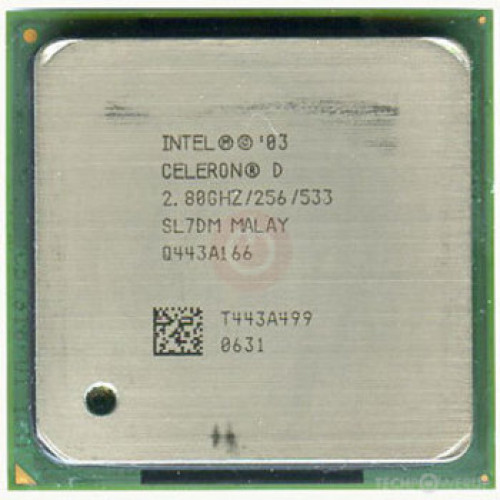

процессор сокет 478 Intel Celeron-D 2,8/256/533 SL7DM
Нет в наличии
- Код товара: процессор сокет 478 Intel Celeron-D 2,8/256/533 SL7DM
Type | CPU / Microprocessor | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Market segment | Desktop | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Family | Intel Celeron D | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Model number | 335 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
CPU part numbers |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 2800 MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Bus speed | 533 MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Clock multiplier | 21 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Package | 478-pin Flip-Chip Pin Grid Array (FC-PGA2) package 1.38" x 1.38" (3.5 cm x 3.5 cm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Socket | Socket 478 / mPGA478B | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Introduction date | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Price at introduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
S-spec numbers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Architecture / Microarchitecture | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Microarchitecture | Netburst | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor core | Prescott-256 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Core steppings | C0 (Q611, SL7C7, SL7TJ) D0 (QM11, SL7DM, SL7L2) E0 (SL7NW, SL7VZ) G1 (SL8HM) | |||||||||||||||||||||||||||||||||||||||||||||||||||||
CPUIDs | F33 (Q611, SL7C7, SL7TJ) F34 (QM11, SL7DM, SL7L2) F41 (SL7NW, SL7VZ) F49 (SL8HM) | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Manufacturing process | 0.09 micron | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Data width | 32 bit | |||||||||||||||||||||||||||||||||||||||||||||||||||||
The number of CPU cores | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
The number of threads | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Floating Point Unit | Integrated | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Level 1 cache size | 16 KB 8-way set associative data cache | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Level 2 cache size | 256 KB 4-way set associative cache | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Extensions and Technologies |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Low power features |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Integrated peripherals / components | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Integrated graphics | None | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical / Thermal parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
V core | 1.25V - 1.4V | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum/Maximum operating temperature | 5°C - 67°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum power dissipation | 94.46 Watt | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Design Power | 73 Watt |
Теги: Celeron-D 2, 8/256/533 SL7DM
