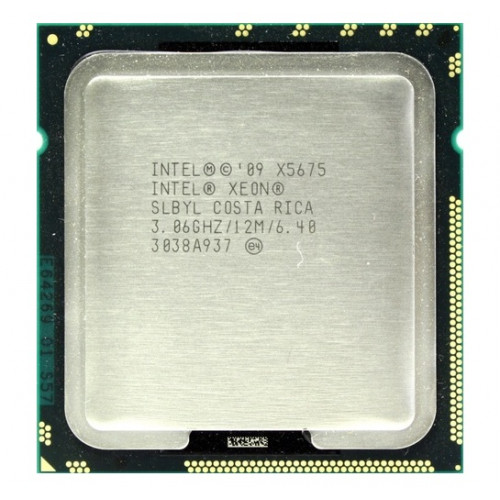

процессор сокет 1366 Intel Xeon X5675 SLBYL
Нет в наличии
| Type | CPU / Microprocessor | ||||||||||||
| Market segment | Server | ||||||||||||
| Family | Intel Xeon 5600 | ||||||||||||
| Model number | X5675 | ||||||||||||
| CPU part numbers |
| ||||||||||||
| Frequency | 3067 MHz | ||||||||||||
| Maximum turbo frequency | 3467 MHz | ||||||||||||
| Bus speed | 6.4 GT/s QPI (3200 MHz) | ||||||||||||
| Clock multiplier | 23 | ||||||||||||
| Package | 1366-land Flip-Chip Land Grid Array (FC-LGA10) | ||||||||||||
| Socket | Socket 1366 / B / LGA1366 | ||||||||||||
| Size | 1.77" x 1.67" / 4.5cm x 4.25cm | ||||||||||||
| S-spec numbers | |||||||||||||
| |||||||||||||
| Architecture / Microarchitecture | |||||||||||||
| Microarchitecture | Westmere | ||||||||||||
| Platform | Tylersburg-EP Tylersburg-EN Tylersburg-WS | ||||||||||||
| Processor core | Westmere-EP | ||||||||||||
| Core stepping | B1 (Q4SF, SLBYL) | ||||||||||||
| CPUID | 206C2 (SLBYL) | ||||||||||||
| Manufacturing process | 0.032 micron High-K metal gate process | ||||||||||||
| Data width | 64 bit | ||||||||||||
| The number of CPU cores | 6 | ||||||||||||
| The number of threads | 12 | ||||||||||||
| Floating Point Unit | Integrated | ||||||||||||
| Level 1 cache size | 6 x 32 KB 4-way set associative instruction caches 6 x 32 KB 8-way set associative data caches | ||||||||||||
| Level 2 cache size | 6 x 256 KB 8-way set associative caches | ||||||||||||
| Level 3 cache size | 12 MB 16-way set associative shared cache | ||||||||||||
| Physical memory | 288 GB | ||||||||||||
| Multiprocessing | Up to 2 processors | ||||||||||||
| Extensions and Technologies |
| ||||||||||||
| Security Features |
| ||||||||||||
| Low power features |
| ||||||||||||
| Integrated peripherals / components | |||||||||||||
| Integrated graphics | None | ||||||||||||
| Memory controller | The number of controllers: 1 Memory channels (per controller): 3 Memory channels (total): 3 Supported memory: DDR3-800, DDR3-1066, DDR3-1333 Maximum memory bandwidth (GB/s): 32 ECC supported: Yes | ||||||||||||
| Other peripherals |
| ||||||||||||
| Electrical / Thermal parameters | |||||||||||||
| V core | 0.75V - 1.35V | ||||||||||||
| Maximum operating temperature | 81.3°C | ||||||||||||
| Thermal Design Power | 95 Watt | ||||||||||||
