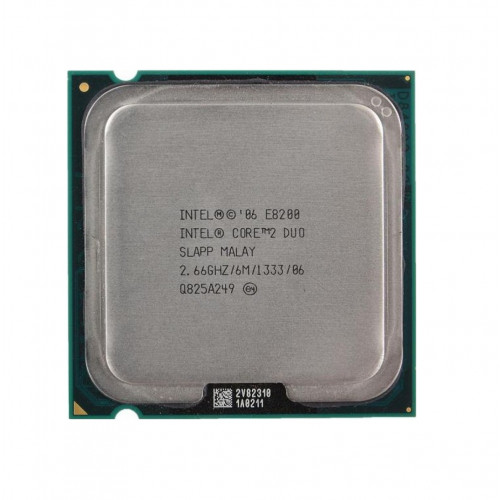

процессор сокет 775 Intel Core2Duo E8200 2,66/6/1333 SLAPP

процессор сокет 775 Intel Core2Duo E8200 2,66/6/1333 SLAPP

На складе
Рейтинг:
Оставить отзыв
На складе 1130
1 130 р.
Нашли дешевле?
  • Код товара: процессор сокет 775 Intel Core2Duo E8200 2,66/6/1333 SLAPP

TypeCPU / Microprocessor
Market segmentDesktop
Family
Intel Core 2 Duo
Model number
E8200
CPU part numbers
  • EU80570PJ0676M is an OEM/tray microprocessor
  • EU80570AJ0676M is an OEM/tray microprocessor
  • BX80570E8200 is a boxed microprocessor with fan and heatsink
  • BXC80570E8200 is a boxed microprocessor with fan and heatsink
  • BX80570E8200A is a boxed microprocessor with fan and heatsink
Frequency 2667 MHz
Bus speed 1333 MHz
Clock multiplier 8
Package775-land Flip-Chip Land Grid Array (FC-LGA8)
1.48" x 1.48" (3.75 cm x 3.75 cm)
SocketSocket 775
Introduction date
Price at introduction
S-spec numbers
Part number
Production processors

SLAPP
BX80570E8200    +
BX80570E8200A    +
BXC80570E8200    +
EU80570AJ0676M


EU80570PJ0676M

 +
Architecture / Microarchitecture
MicroarchitectureCore
Processor core Wolfdale
Core steppings A1 (QZRN)
C0 (Q9HR, Q9JE, SLAPP)
CPUIDs676 (Q9JE)
10676 (SLAPP)
Manufacturing process0.045 micron
410 million transistors
Die107mm2
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size shared 6 MB 24-way set associative cache
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4.1 / Streaming SIMD Extensions 4.1
  • EM64T / Extended Memory 64 technology / Intel 64
  • VT-x / Virtualization technology
Security Features
  • NX / XD / Execute disable bit
  • TXT / Trusted Execution technology
Low power features
  • Enhanced SpeedStechnology
  • Stop Grant state
  • Halt state
  • Extended Halt state
  • Extended Stop Grant State
  • Sleep state
  • Deep Sleep state
  • Deeper Sleep state
Integrated peripherals / components
Integrated graphicsNone
Electrical / Thermal parameters
V core 0.85V - 1.3625V
Minimum/Maximum operating temperature 5°C - 72.4°C
Minimum/Maximum power dissipation 6 Watt (TDP in Deeper Sleep mode) / 100.31 Watt
Thermal Design Power 65 Watt
