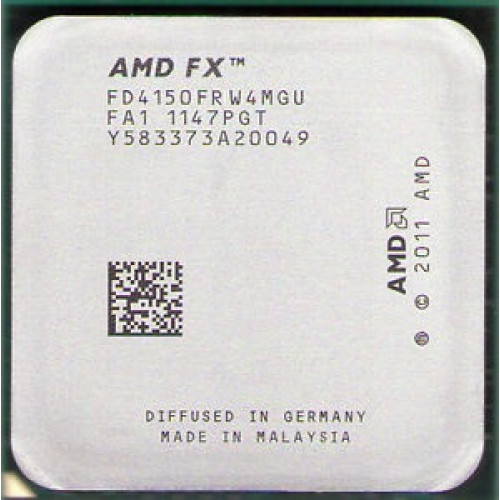

процессор сокет Am3+ AMD FX-4150 - FD4150FRW4MGU
Нет в наличии
- Код товара: процессор сокет Am3+ AMD FX-4150 - FD4150FRW4MGU
| Type | CPU / Microprocessor |
| Market segment | Desktop |
| Family | AMD FX-Series |
| Model number | FX-4150 |
| CPU part number |
|
| Frequency | 4000 MHz |
| Maximum turbo frequency | 4100 MHz |
| Boosted P states | #1: 4100 MHz, 1.4125V |
| Package | 940-pin organic micro Pin Grid Array (UOC940) Pb-free |
| Socket | Socket AM3+ |
| Size | 1.57" x 1.57" / 4cm x 4cm |
| Architecture / Microarchitecture | |
| Microarchitecture | Bulldozer |
| Platform | Scorpius |
| Processor core | Zambezi |
| Core stepping | OR-B2 |
| CPUID | 600F12 |
| Manufacturing process | 0.032 micron Hi-K Metal Gate process with silicon-on-insulator (SOI) technology |
| Die | 316mm2 |
| Data width | 64 bit |
| The number of CPU cores | 4 |
| The number of threads | 4 |
| Floating Point Unit | Integrated (shared between each pair of cores) |
| Level 1 cache size | 2 x 64 KB 2-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches |
| Level 2 cache size | 2 x 2 MB 16-way set associative shared exclusive caches |
| Level 3 cache size | 4 MB 32-way set associative shared cache |
| Cache latency | 3 (L1 cache) |
| Multiprocessing | Uniprocessor |
| Extensions and Technologies |
|
| Security Features |
|
| Low power features |
|
| Low power P states | #1: 3900 MHz, 1.3625V #2: 3600 MHz, 1.2875V #3: 2800 MHz, 1.15V #4: 2000 MHz, 1.025V #5: 1400 MHz, 0.9375V |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Channel width (bits): 72 Supported memory: DDR3-1866 DIMMs per channel: 2 Maximum memory bandwidth (GB/s): 29.9 |
| Other peripherals |
|
| Electrical / Thermal parameters | |
| Thermal Design Power | 125 Watt |
