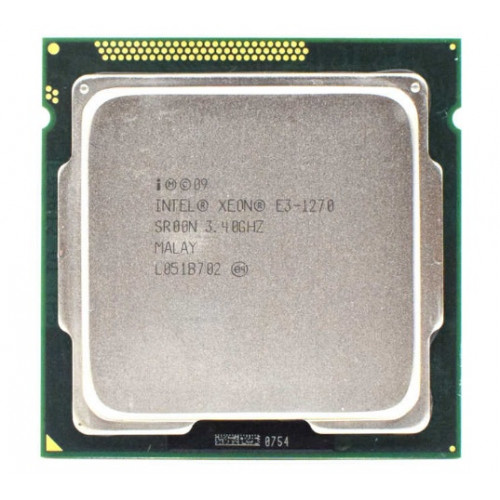

процессор сокет 1155 Intel Xeon E3-1270 SR00N

процессор сокет 1155 Intel Xeon E3-1270 SR00N

Нет в наличии
Рейтинг:

Нет в наличии 4220
4 220 р.

  • Код товара: процессор сокет 1155 Intel Xeon E3-1270 SR00N
TypeCPU / Microprocessor
Market segmentServer
Family
Intel Xeon E3-1200
Model number
E3-1270
CPU part numbers
  • CM8062307262403 is an OEM/tray microprocessor
  • BX80623E31270 is a boxed microprocessor
Frequency 3400 MHz
Maximum turbo frequency3800 MHz (1 core)
3700 MHz (2 cores)
3600 MHz (3 cores)
3500 MHz (4 cores)
Bus speed 5 GT/s DMI
Clock multiplier 34
Package1155-land Flip-Chip Land Grid Array (FCLGA 1155)
SocketSocket 1155 / H2 / LGA1155
Size1.48" x 1.48" / 3.75cm x 3.75cm

S-spec numbers
Part number
Production processors

SR00N
BX80623E31270 +
CM8062307262403
+
Architecture / Microarchitecture
MicroarchitectureSandy Bridge
PlatformBromolow
Processor core Sandy Bridge
Core stepping D2 (Q1HW, SR00N)
CPUID206A7 (SR00N)
Manufacturing process0.032 micron High-K metal gate process
Data width64 bit
The number of CPU cores4
The number of threads8
Floating Point UnitIntegrated
Level 1 cache size 4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size 4 x 256 KB 8-way set associative caches
Level 3 cache size8 MB 16-way set associative shared cache
Physical memory32 GB
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
Security Features
  • NX / XD / Execute disable bit
  • TXT / Trusted Execution technology
Low power features
  • C1, C3 and C6 thread states
  • C1/C1E, C3 and C6 core states
  • C1/C1E, C3 and C6 package states
  • Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsNone
Memory controllerThe number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
ECC supported: Yes
Other peripherals
  • Direct Media Interface 2.0
  • PCI Express 2.0 interface
Electrical / Thermal parameters
Minimum/Maximum operating temperature 5°C - 69.1°C
Minimum power dissipation5.5 Watt (C6 state)
Thermal Design Power 80 Watt
