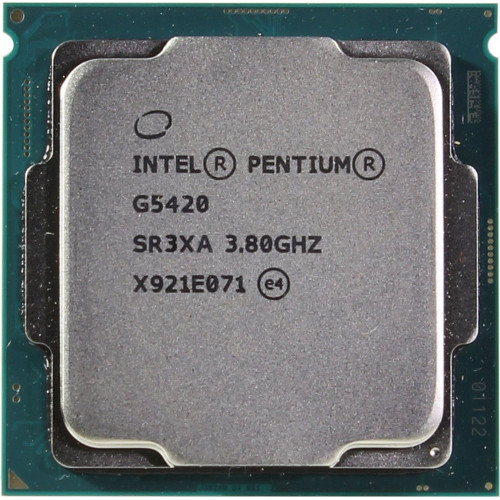

процессор сокет 1151v2 Intel Pentium G5420 SR3XA

процессор сокет 1151v2 Intel Pentium G5420 SR3XA

Нет в наличии
Рейтинг:
Оставить отзыв
Нет в наличии 4670
4 670 р.
Нашли дешевле?
  • Код товара: процессор сокет 1151v2 Intel Pentium G5420 SR3XA
TypeCPU / Microprocessor
Market segmentDesktop
Family
Intel Pentium Dual-Core
Model number
G5420
CPU part numbers
  • CM8068403360113 is an OEM/tray microprocessor
  • BX80684G5420 is a boxed processor (English version)
  • BXC80684G5420 is a boxed processor (Chinese version)
Frequency 3800 MHz
Low power frequency800 MHz
Bus speed 8 GT/s DMI
Clock multiplier 38
Package1151-land Flip-Chip Land Grid Array
SocketSocket 1151 / LGA1151
Size1.48" x 1.48" / 3.75cm x 3.75cm
Introduction date
Price at introduction
S-spec numbers
Part number
Production processors

SR3XA
BX80684G5420  +
BXC80684G5420
CM8068403360113  +



Architecture / Microarchitecture
MicroarchitectureCoffee Lake
Processor core Coffee Lake-S
Core steppings B0 (QP7T, SR3YH)
U0 (QP71, SR3XA)
Manufacturing process0.014 micron
Data width64 bit
The number of CPU cores2
The number of threads4
Floating Point UnitIntegrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size4 MB 16-way set associative shared cache
Physical memory64 GB
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
Security Features
  • NX / XD / Execute disable bit
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
  • SMAP / Supervisor Mode Access Prevention
  • SMEP / Secure Mode Execution Protection
Low power features
  • Core C1/C1E, C3, C6, C7, C8, C9 and C10 states
  • Package C2, C3, C6, C7, C8, C9 and C10 states
  • Enhanced SpeedStep technology
Integrated peripherals / components
Display controller
  • 3 displays
  • DVI / DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4
Integrated graphicsGPU Type: Intel UHD 610
Graphics tier: GT1 [1]
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1050
Memory controllerThe number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2400
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 38.4
ECC supported: Yes
Other peripherals
  • Direct Media Interface 3.0 (4 lanes)
  • PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Minimum/Maximum operating temperature 0°C (case temperature) - 66°C (case temperature)
100°C (Digital Thermal Sensor)
Thermal Design Power 54 Watt
58 Watt
