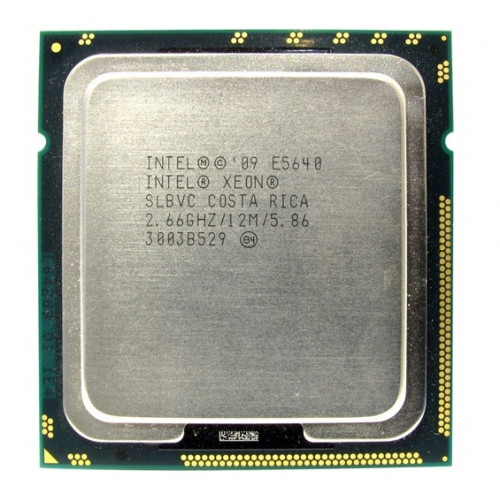

процессор сокет 1366 Intel Xeon E5640 SLBVC
Нет в наличии
| Type | CPU / Microprocessor | ||||||||||||||||
| Market segment | Server | ||||||||||||||||
| Family | Intel Xeon 5600 | ||||||||||||||||
| Model number | E5640 | ||||||||||||||||
| CPU part numbers |
| ||||||||||||||||
| Frequency | 2267 MHz | ||||||||||||||||
| Maximum turbo frequency | 2800 MHz (1 or 2 cores) 2667 MHz (3 or 4 cores) 2533 MHz (5 or 6 cores) | ||||||||||||||||
| Bus speed | 5.86 GT/s QPI (2933 MHz) | ||||||||||||||||
| Clock multiplier | 17 | ||||||||||||||||
| Package | 1366-land Flip-Chip Land Grid Array (FC-LGA10) | ||||||||||||||||
| Socket | Socket 1366 / B / LGA1366 | ||||||||||||||||
| Size | 1.77" x 1.67" / 4.5cm x 4.25cm | ||||||||||||||||
| S-spec numbers | |||||||||||||||||
| |||||||||||||||||
| Architecture / Microarchitecture | |||||||||||||||||
| Microarchitecture | Westmere | ||||||||||||||||
| Platform | Tylersburg-EP Tylersburg-EN Tylersburg-WS | ||||||||||||||||
| Processor core | Westmere-EP | ||||||||||||||||
| Core stepping | B1 (Q4EQ, SLBV8) | ||||||||||||||||
| CPUID | 206C2 (SLBV8) | ||||||||||||||||
| Manufacturing process | 0.032 micron High-K metal gate process 1170 million transistors | ||||||||||||||||
| Die | 240mm2 | ||||||||||||||||
| Data width | 64 bit | ||||||||||||||||
| The number of CPU cores | 6 | ||||||||||||||||
| The number of threads | 12 | ||||||||||||||||
| Floating Point Unit | Integrated | ||||||||||||||||
| Level 1 cache size | 6 x 32 KB 4-way set associative instruction caches 6 x 32 KB 8-way set associative data caches | ||||||||||||||||
| Level 2 cache size | 6 x 256 KB 8-way set associative caches | ||||||||||||||||
| Level 3 cache size | 12 MB 16-way set associative shared cache | ||||||||||||||||
| Physical memory | 288 GB | ||||||||||||||||
| Multiprocessing | Up to 2 processors | ||||||||||||||||
| Extensions and Technologies |
| ||||||||||||||||
| Security Features |
| ||||||||||||||||
| Low power features |
| ||||||||||||||||
| Integrated peripherals / components | |||||||||||||||||
| Integrated graphics | None | ||||||||||||||||
| Memory controller | The number of controllers: 1 Memory channels (per controller): 3 Memory channels (total): 3 Supported memory: DDR3-800, DDR3-1066, DDR3-1333 Maximum memory bandwidth (GB/s): 32 ECC supported: Yes | ||||||||||||||||
| Other peripherals |
| ||||||||||||||||
| Electrical / Thermal parameters | |||||||||||||||||
| V core | 0.8V - 1.3V | ||||||||||||||||
| Maximum operating temperature | 69.4°C | ||||||||||||||||
| Thermal Design Power | 60 Watt | ||||||||||||||||
Теги: Xeon E5640 SLBVC
