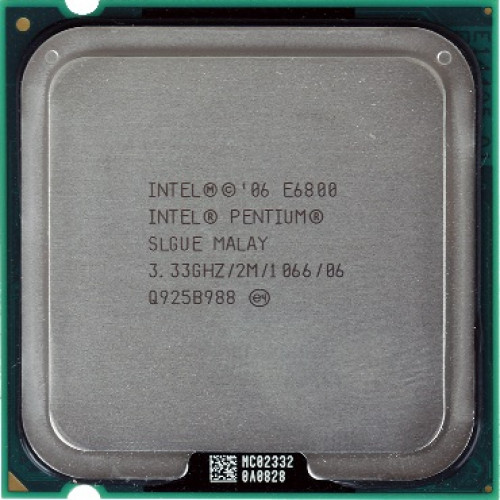

процессор сокет 775 Intel Pentium Dual-Core E6800 3,33/2/1066 SLGUE
Нет в наличии
- Код товара: сокет 775 Intel Pentium Dual-Core E6800 3,33/2/1066 SLGUE
| Type | CPU / Microprocessor | ||||||||||
| Market segment | Desktop | ||||||||||
| Family | Intel Pentium Dual-Core | ||||||||||
| Model number | E6800 | ||||||||||
| CPU part numbers |
| ||||||||||
| Frequency | 3333 MHz | ||||||||||
| Bus speed | 1066 MHz | ||||||||||
| Clock multiplier | 12.5 | ||||||||||
| Package | 775-land Flip Chip Land Grid Array (FC-LGA8) | ||||||||||
| Socket | Socket 775 | ||||||||||
| Size | 1.48" x 1.48" / 3.75cm x 3.75cm | ||||||||||
| Weight | 0.8oz / 22.5g (CPU) 11.9oz / 337.2g (box) | ||||||||||
| Introduction date | |||||||||||
| End-of-Life date | |||||||||||
| Price at introduction | |||||||||||
| S-spec numbers | |||||||||||
| |||||||||||
| Architecture / Microarchitecture | |||||||||||
| Microarchitecture | Core | ||||||||||
| Processor core | Wolfdale-3M | ||||||||||
| Core stepping | R0 (SLGUE) | ||||||||||
| CPUID | 1067A (SLGUE) | ||||||||||
| Manufacturing process | 0.045 micron 228 million transistors | ||||||||||
| Die | 82mm2 | ||||||||||
| Data width | 64 bit | ||||||||||
| The number of CPU cores | 2 | ||||||||||
| The number of threads | 2 | ||||||||||
| Floating Point Unit | Integrated | ||||||||||
| Level 1 cache size | 2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches | ||||||||||
| Level 2 cache size | shared 2 MB 8-way set associative cache | ||||||||||
| Cache latency | 3 (L1 cache) 16 (L2 cache) | ||||||||||
| Multiprocessing | Not supported | ||||||||||
| Extensions and Technologies |
| ||||||||||
| Security Features |
| ||||||||||
| Low power features |
| ||||||||||
| Integrated peripherals / components | |||||||||||
| Integrated graphics | None | ||||||||||
| Electrical / Thermal parameters | |||||||||||
| V core | 0.85V - 1.3625V | ||||||||||
| Minimum/Maximum operating temperature | 5°C - 74.1°C | ||||||||||
| Thermal Design Power | 65 Watt | ||||||||||
