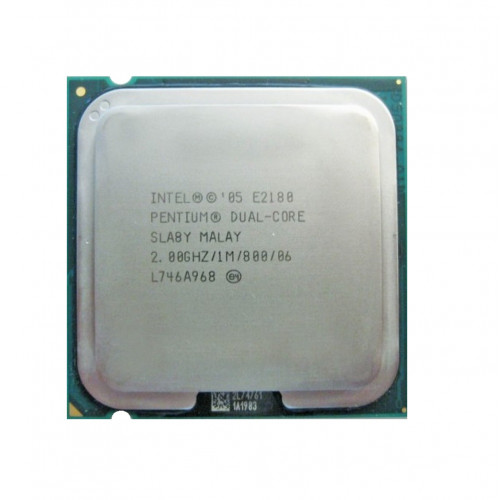

процессор сокет 775 Intel Pentium Dual-Core E2180 2,0/1/800 SLA8Y

процессор сокет 775 Intel Pentium Dual-Core E2180 2,0/1/800 SLA8Y

Нет в наличии
Рейтинг:

Нет в наличии 540
540 р.

  • Код товара: сокет 775 Intel Pentium Dual-Core E2180 2,0/1/800 SLA8Y

TypeCPU / Microprocessor
Market segmentDesktop
Family
Intel Pentium Dual-Core
Model number
E2180
CPU part numbers
  • HH80557PG0411M is an OEM/tray microprocessor
  • BX80557E2180 is a boxed processor with fan and heatsink (English version)
  • BXC80557E2180 is a boxed processor with fan and heatsink (Chinese version)
Frequency 2000 MHz
Bus speed 800 MHz
Clock multiplier 10
Package775-land Flip Chip Land Grid Array (FC-LGA6)
1.48" x 1.48" (3.75 cm x 3.75 cm)
SocketSocket 775
Introduction date
Price at introduction
S-spec numbers
Part numberProduction processors
 SLA8Y
BX80557E2180+
BXC80557E2180+
HH80557PG0411M+
Architecture / Microarchitecture
MicroarchitectureCore
Processor core Allendale
Core stepping M0 (SLA8Y)
CPUID6FD (SLA8Y)
Manufacturing process0.065 micron
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 1 MB 4-way set associative shared cache
Cache latency3 (L1 cache)
14 (L2 cache)
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • EM64T / Extended Memory 64 technology / Intel 64
Security Features
  • NX / XD / Execute disable bit
Low power features
  • Halt mode
  • Extended Halt mode
  • Stop Grant mode
  • Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsNone
Electrical / Thermal parameters
V core 0.85V - 1.5V
Minimum/Maximum operating temperature 5°C - 73.3°C
Minimum/Maximum power dissipation 8 Watt (TDP for Enhanced HALT mode) / 111.15 Watt
Thermal Design Power 65 Watt
