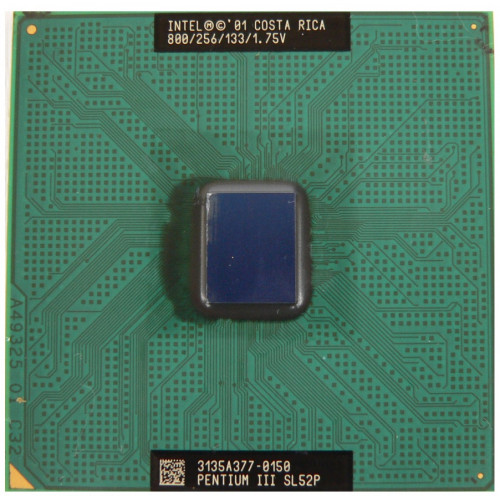

процессор сокет 370 Intel Pentium III 800/256/133 SL52P
Нет в наличии
- Код товара: процессор сокет 370 Intel Pentium III 800/256/133 SL52P
Type | |||||||||||||||||||||||||||||||
Market segment | Desktop | ||||||||||||||||||||||||||||||
Family | Intel Pentium III | ||||||||||||||||||||||||||||||
Model number | 800EB | ||||||||||||||||||||||||||||||
CPU part numbers |
| ||||||||||||||||||||||||||||||
Frequency | 800 MHz | ||||||||||||||||||||||||||||||
Bus speed | 133 MHz | ||||||||||||||||||||||||||||||
Clock multiplier | 6 | ||||||||||||||||||||||||||||||
Package | 370-pin Flip-Chip Pin Grid Array (FC-PGA) 1.95" x 1.95" (4.95 cm x 4.95 cm) | ||||||||||||||||||||||||||||||
Socket | Socket 370 / PGA370 | ||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
Architecture / Microarchitecture | |||||||||||||||||||||||||||||||
Microarchitecture | P6 | ||||||||||||||||||||||||||||||
Processor core | Coppermine | ||||||||||||||||||||||||||||||
Core steppings | cA2 (QN23, SL3VE, SL3WB) cB0 (QP15, QS22, QS81, SL3Y2) cC0 (SL4CD, SL4MB) cD0 (SL52P) | ||||||||||||||||||||||||||||||
CPUIDs | 681 (SL3VE, SL3WB) 683 (QP15, QS22, SL3Y2) 686 (SL4CD, SL4MB) 68A (SL52P) | ||||||||||||||||||||||||||||||
Manufacturing process | 0.18 micron 28 million transistors | ||||||||||||||||||||||||||||||
Die | 104.6mm2 (CPUID 0683h) 90mm2 (CPUID 0686h) 94.7mm2 (CPUID 068Ah) | ||||||||||||||||||||||||||||||
Data width | 32 bit | ||||||||||||||||||||||||||||||
Data bus width | 64 bit | ||||||||||||||||||||||||||||||
The number of CPU cores | 1 | ||||||||||||||||||||||||||||||
The number of threads | 1 | ||||||||||||||||||||||||||||||
Floating Point Unit | Integrated | ||||||||||||||||||||||||||||||
Level 1 cache size | 16 KB 4-way set associative instruction cache 16 KB 4-way set associative data cache | ||||||||||||||||||||||||||||||
Level 2 cache size | Full-speed integrated 8-way set associative 256 KB | ||||||||||||||||||||||||||||||
Multiprocessing | Up to 2 processors | ||||||||||||||||||||||||||||||
Extensions and Technologies |
| ||||||||||||||||||||||||||||||
Low power features |
| ||||||||||||||||||||||||||||||
Electrical / Thermal parameters | |||||||||||||||||||||||||||||||
Min/Recommended/Max V core | 1.57V / 1.65V / 1.69V 1.62V / 1.7V / 1.74V 1.67V / 1.75V / 1.79V | ||||||||||||||||||||||||||||||
Minimum/Maximum operating temperature | 0°C - 80°C | ||||||||||||||||||||||||||||||
Maximum power dissipation | 27.2 Watt (1.7V core) 29.05 Watt (1.75V core) | ||||||||||||||||||||||||||||||
Thermal Design Power | 20.8 Watt (CPUID 0686h) 24.5 Watt (CPUID 068Ah) |
