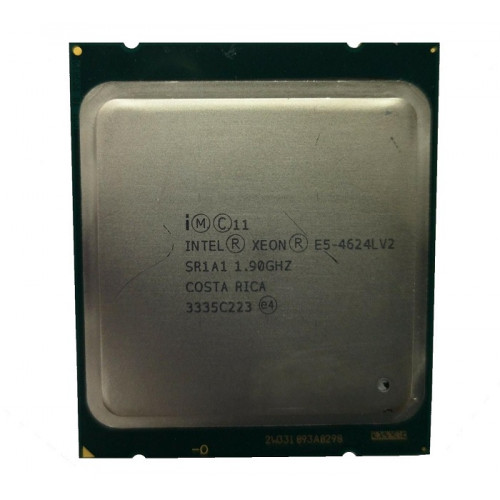

процессор сокет 2011 Intel Xeon E5-4624L v2 SR1A1

процессор сокет 2011 Intel Xeon E5-4624L v2 SR1A1

Нет в наличии
Рейтинг:

Нет в наличии 19770
19 770 р.

  • Код товара: процессор сокет 2011 Intel Xeon E5-4624L v2 SR1A1
TypeCPU / Microprocessor
Market segmentEmbedded
Family
Intel Xeon E5-4600 v2
Model number
E5-4624L v2
CPU part number
  • CM8063501293407 is an OEM/tray microprocessor
Frequency 1900 MHz
Maximum turbo frequency2100 MHz (9 or 10 cores)
2200 MHz (7 or 8 cores)
2300 MHz (5 or 6 cores)
2400 MHz (3 or 4 cores)
2500 MHz (2 cores)
2500 MHz (1 core)
Bus speed 8 GT/s QPI (4000 MHz)
5 GT/s DMI
Clock multiplier 19
Package2011-land Flip-Chip Land Grid Array
SocketSocket 2011 / LGA2011
Size2.07" x 1.77" / 5.25cm x 4.5cm

S-spec numbers
Part number
Production processors

SR1A1
CM8063501293407 +



Architecture / Microarchitecture
MicroarchitectureIvy Bridge
Processor core Ivy Bridge-EP
Core stepping M1 (QF6H, SR1A1)
CPUID306E4 (QF6H, SR1A1)
Manufacturing process0.022 micron
Data width64 bit
The number of CPU cores10
The number of threads20
Floating Point UnitIntegrated
Level 1 cache size 10 x 32 KB 8-way set associative instruction caches
10 x 32 KB 8-way set associative data caches
Level 2 cache size 10 x 256 KB 8-way set associative caches
Level 3 cache size25 MB shared cache
Physical memory768 GB (per socket)
MultiprocessingUp to 4 processors
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • F16C / 16-bit Floating-Point conversion instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
Security Features
  • NX / XD / Execute disable bit
  • TXT / Trusted Execution technology
  • SMEP / Secure Mode Execution Protection
Low power features
  • Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsNone
Memory controllerThe number of controllers: 1
Memory channels (per controller): 4
Memory channels (total): 4
Supported memory: DDR3-800, DDR3-1066, DDR3-1333, DDR3-1600, DDR3-1866
Maximum memory bandwidth (GB/s): 59.7
ECC supported: Yes
Other peripherals
  • Direct Media Interface 2.0
  • Quick Path Interconnect (2 links)
  • PCI Express 3.0 interface
Electrical / Thermal parameters
V core 0.65V - 1.3V
Minimum/Maximum operating temperature 5°C - 77.2°C (nominal)
92.2°C (short-term)
Thermal Design Power 70 Watt
