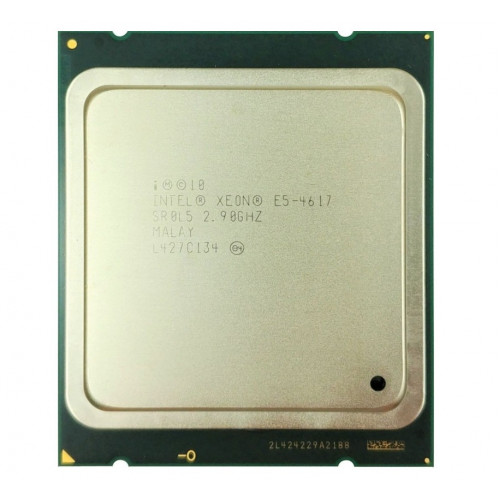

процессор сокет 2011 Intel Xeon E5-4617 SR0L5
Нет в наличии
- Код товара: процессор сокет 2011 Intel Xeon E5-4617 SR0L5
| Type | CPU / Microprocessor | |||||||||
| Market segment | Server | |||||||||
| Family | Intel Xeon E5-4600 | |||||||||
| Model number | E5-4617 | |||||||||
| CPU part number |
| |||||||||
| Frequency | 2900 MHz | |||||||||
| Maximum turbo frequency | 3400 MHz (2 cores) 3200 MHz (6 cores) | |||||||||
| Bus speed | 7.2 GT/s QPI (3600 MHz) 5 GT/s DMI | |||||||||
| Clock multiplier | 29 | |||||||||
| Package | 2011-land Flip-Chip Land Grid Array | |||||||||
| Socket | Socket 2011 / LGA2011 | |||||||||
| Size | 2.07" x 1.77" / 5.25cm x 4.5cm | |||||||||
| S-spec numbers | ||||||||||
| ||||||||||
| Architecture / Microarchitecture | ||||||||||
| Microarchitecture | Sandy Bridge | |||||||||
| Processor core | Sandy Bridge-EP | |||||||||
| Core steppings | C0 (QB85) C2 (SR0L5) | |||||||||
| CPUIDs | 206D5 (QB85) 206D7 (SR0L5) | |||||||||
| Manufacturing process | 0.032 micron Hi-K metal gate process | |||||||||
| Data width | 64 bit | |||||||||
| The number of CPU cores | 6 | |||||||||
| The number of threads | 6 | |||||||||
| Floating Point Unit | Integrated | |||||||||
| Level 1 cache size | 6 x 32 KB 8-way set associative instruction caches 6 x 32 KB 8-way set associative data caches | |||||||||
| Level 2 cache size | 6 x 256 KB 8-way set associative caches | |||||||||
| Level 3 cache size | 15 MB 20-way set associative shared cache | |||||||||
| Physical memory | 384 GB (per socket) | |||||||||
| Multiprocessing | Up to 4 processors | |||||||||
| Extensions and Technologies |
| |||||||||
| Security Features |
| |||||||||
| Low power features |
| |||||||||
| Integrated peripherals / components | ||||||||||
| Integrated graphics | None | |||||||||
| Memory controller | The number of controllers: 1 Memory channels (per controller): 4 Memory channels (total): 4 Supported memory: DDR3-800, DDR3-1066, DDR3-1333, DDR3-1600 Maximum memory bandwidth (GB/s): 51.2 ECC supported: Yes | |||||||||
| Other peripherals |
| |||||||||
| Electrical / Thermal parameters | ||||||||||
| V core | 0.6V - 1.35V | |||||||||
| Thermal Design Power | 130 Watt | |||||||||
Теги: Xeon E5-4617 SR0L5
