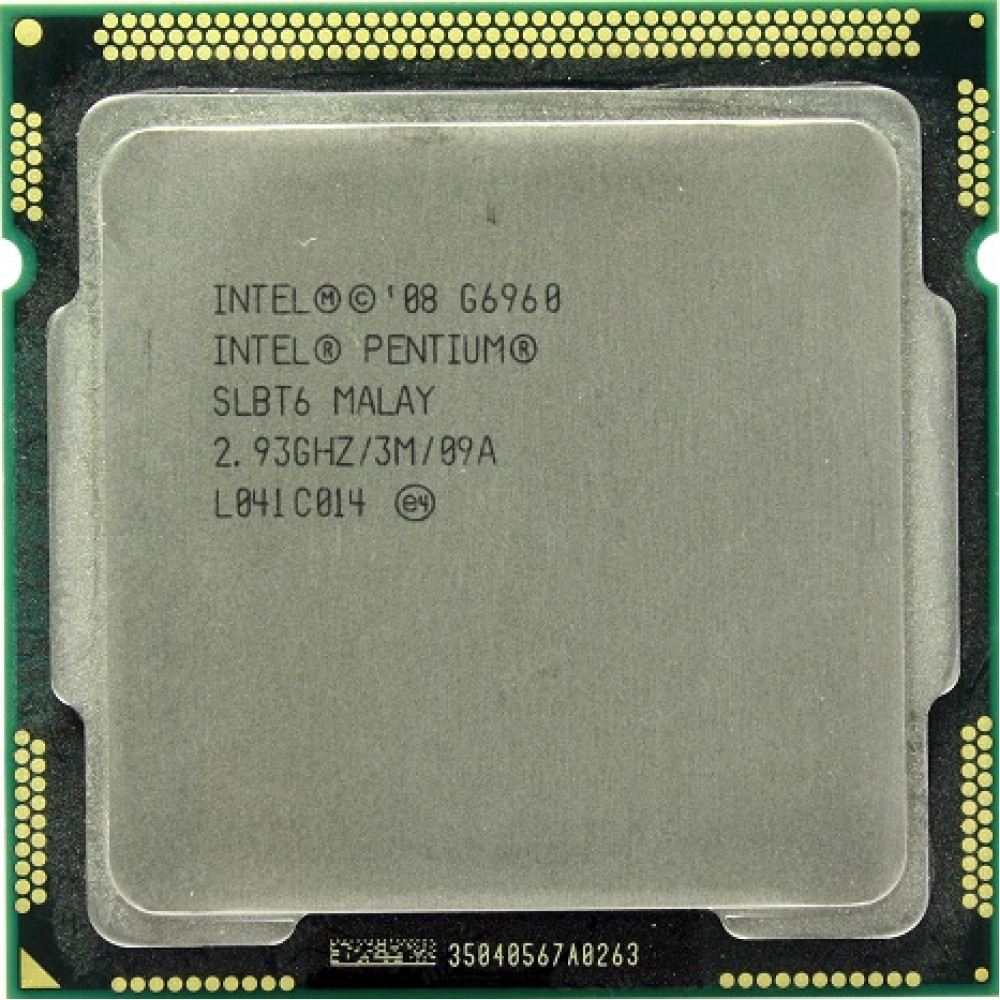

процессор сокет 1156 Intel Pentium G6960 SLBT6
Нет в наличии
| Type | CPU / Microprocessor | |||||||||
| Market segment | Desktop | |||||||||
| Family | Intel Pentium Dual-Core | |||||||||
| Model number | G6960 | |||||||||
| CPU part number |
| |||||||||
| Frequency | 2933 MHz | |||||||||
| Bus speed | 2.5 GT/s DMI | |||||||||
| Clock multiplier | 22 | |||||||||
| Package | 1156-land Flip-Chip Land Grid Array (FC-LGA10) | |||||||||
| Socket | Socket 1156 / LGA1156 | |||||||||
| Size | 1.48" x 1.48" / 3.75cm x 3.75cm | |||||||||
| Introduction date | ||||||||||
| End-of-Life date | ||||||||||
| Price at introduction | ||||||||||
| S-spec numbers | ||||||||||
| ||||||||||
| Architecture / Microarchitecture | ||||||||||
| Microarchitecture | Westmere | |||||||||
| Processor core | Clarkdale | |||||||||
| Core stepping | K0 (Q4DQ, SLBT6) | |||||||||
| Manufacturing process | 0.032 micron 382 million transistors (CPU die) 177 million transistors (IMC / graphics die) | |||||||||
| Die | 81mm2 (CPU die) 114mm2 (IMC / graphics die) | |||||||||
| Data width | 64 bit | |||||||||
| The number of CPU cores | 2 | |||||||||
| The number of threads | 2 | |||||||||
| Floating Point Unit | Integrated | |||||||||
| Level 1 cache size | 2 x 32 KB 4-way set associative instruction caches 2 x 32 KB 8-way set associative data caches | |||||||||
| Level 2 cache size | 2 x 256 KB 8-way set associative caches | |||||||||
| Level 3 cache size | 3 MB 12-way set associative shared cache | |||||||||
| Physical memory | 16 GB | |||||||||
| Multiprocessing | Not supported | |||||||||
| Extensions and Technologies |
| |||||||||
| Security Features |
| |||||||||
| Low power features |
| |||||||||
| Integrated peripherals / components | ||||||||||
| Integrated graphics | GPU Type: HD (Westmere) Base frequency (MHz): 533 The number of supported displays: 2 | |||||||||
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1066 Maximum memory bandwidth (GB/s): 17.1 | |||||||||
| Other peripherals |
| |||||||||
| Electrical / Thermal parameters | ||||||||||
| V core | 0.65V - 1.4V | |||||||||
| Minimum/Maximum operating temperature | 5°C - 72.6°C | |||||||||
| Thermal Design Power | 73 Watt | |||||||||
Теги: Pentium G6960 SLBT6
