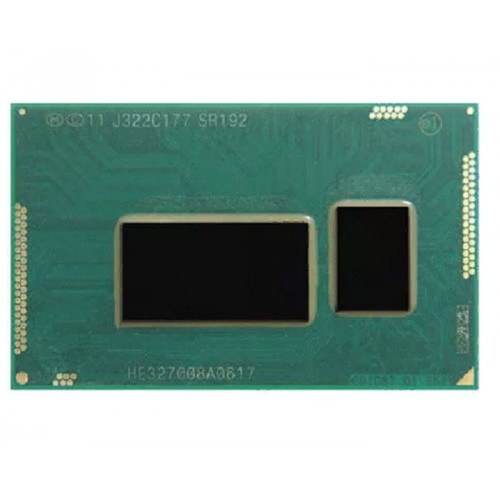

процессор Core i5-4300Y, SR192

процессор Core i5-4300Y, SR192

Предзаказ
Рейтинг:

Предзаказ 11220
11 220 р.

  • Код товара: процессор Core i5-4300Y, SR192
Family
Model number
CPU part number
 CL8064701558601 is an OEM/tray microprocessor
Frequency  1600 MHz
Maximum turbo frequency2300 MHz (1 core)
2000 MHz (2 cores)
Bus speed  5 GT/s DMI
Clock multiplier  16
Package1168-ball micro-FCBGA package (FCBGA1168)
SocketBGA1168
Size1.57" x 0.94" / 4cm x 2.4cm
Introduction date
Price at introduction
S-spec numbers
Part numberProduction processors
 SR192
CL8064701558601+
Architecture / Microarchitecture
MicroarchitectureHaswell
PlatformShark Bay
Processor core  Haswell
Core stepping  D0 (SR192)
Manufacturing process0.022 micron
Data width64 bit
The number of CPU cores2
The number of threads4
Floating Point UnitIntegrated
Level 1 cache size  2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size  2 x 256 KB 8-way set associative caches
Level 3 cache size3 MB 12-way set associative shared cache
Physical memory16 GB
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • TBT 2.0 / Turbo Boost technology 2.0
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TSX / Transactional Synchronization Extensions
Security Features
  • NX / XD / Execute disable bit
  • TXT / Trusted Execution technology
  • SMEP / Secure Mode Execution Protection
Low power features
  • Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsGPU Type: HD 4200
Graphics tier: GT2
Microarchitecture: Gen 7.5
Execution units: 20 [1]
Base frequency (MHz): 200
Maximum frequency (MHz): 850
The number of supported displays: 3
Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, LPDDR3-1333, LPDDR3-1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals
  • Direct Media Interface 2.0
  • PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature  100°C
Thermal Design Power  11.5 Watt
